Video Technical Support Plate Clarifier for Environmental Sewage Treatment Equipment

Name: Video Technical Support Plate Clarifier for Environmental Sewage Treatment Equipment
Brand: Better
Price: 5 USD

Buy cheap Video Technical Support Plate Clarifier for Environmental Sewage Treatment Equipment product

Condition : New

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Pressure vessel, Pump, Engine, PLC

Place of Origin : Shandong, China

Brand Name : Better

Weight : 2300kg

Size : 330*220*210cm

Power : 2.2kw

Warranty : 1 Year

Productivity : 3000L/Hour

Material : Q235 carbon steel /Stainless Steel

Capacity : 5-300 t/hour

Certification : CE ISO

Operation : Automatic Running

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : None

After-sales Service Provided : Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support

Packaging Details : seaworthy packaging

Price : $5,800.00/pieces 1-2 pieces

MOQ : 1

Contact Now

One step solution from design, produce, installation, commissioning.
The DAF clarifier provides effective of suspended solids, fats, oils and greases from liquids by dissolved air flotation.
Flotation of the solids is accomplished by the introduction of microscopic air bubbles into the process water. As the bubbles rise, they attach themselves to the particles in suspension and carry them to the surface for removed.

Video Technical Support Plate Clarifier for Environmental Sewage Treatment Equipment

Used in Corresponding water quality as follow :
high SS, and the specific gravity of suspended solids or contaminants is generally slight greater than water, like: oil and Fats, Food Industry effluents with high solids concentration, Sludge Thickening, Galvanizing Electro, Pharmaceutical , Leather Industry, etc.

1. Design treatment capacity:4-300 m3/h.
2. High-rate clarifier for high SS water (light particles, oil and colloid).
3. Fully (100%) manufactured in the factory, and no need secondary welding. It costs 3h for 2 manpower to assemble.
4. Indoor or outdoor layout (environmental temperature should be over 0°C).
5. Apply to automatic & continuous operation.
6. Design life: Carbon steel material: >10years;
304 Stainless steel material: >20years.
316 Stainless steel material: >25 years.

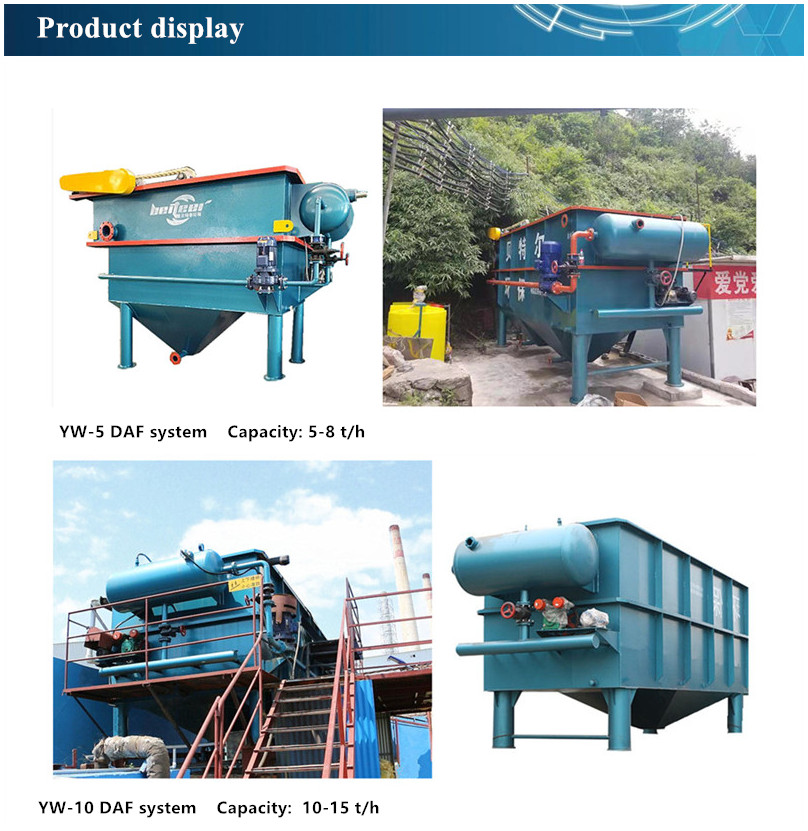

Product Paramenters

Model	Capacity (t/h)	Main dynamo power （kw)	Dissolved tank size (mm)	Overall dimension (mm)
YW-5	4-5	3	400*1000	330018002200
YW-10	8-10	4	500*1512	400021002200
YW-20	15-20	7.5	500*1512	460024002200
YW-40	30-40	7.5	600*1880	600026002400
YW-60	50-60	11	600*1880	760028002400
YW-80	70-80	11	650*2034	920028002400
YW-105	90-105	15	700*1980	1000028002600

seaworthy packaging
